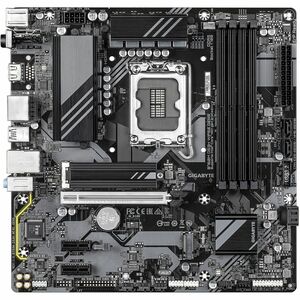

GIGABYTE B760M DS3H WIFI6E GEN5 LGA 1700 Intel B760 M-ATX Motherboard with DDR5, M.2, PCIe 5.0, USB 3.2 Gen 2 Type-C, WIFI6E 2.5GbE LAN, WiFi EZ-Plug, PCIe EZ-Latch
- Item #:
- Category:
- Availability:
- Packaging:
- Platform:
- Condition:
- Brand:
- SBS-1060114
- Intel Motherboards
- Item is in stock
- Retail Packaging
- N/A
- New
- Gigabyte
For Government/Education/Business pricing, please call 440.355.8008
Product Rating
(0 Ratings)
General Information
Express to PCIE5 Performance The new GIGABYTE B760 motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement. Durable Performance GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform. PCIe UD Slot GIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards. 1.7X stronger shearing test 3.2X stronger retention force test Reduced Signal Degradation with SMD Technology UD Power Connector Our innovative UD Power Connector design enhances power conductivity and thermal dissipation. Solid Pins Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections VRM Thermal Durable VRM heatsinks keep your system cool and efficient. 2X Massive cooling surface Exceptional heat dissipation Smart Fan 6 Cool. Quiet. Customized. Hybrid VRM Design The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability. Unlock DDR5 Performance GIGABYTE is offering a tested and proven platform with extreme memory performance boost. |
Technical Information
| AI-powered: | Yes |
Processor & Chipset
| Chipset Manufacturer: | Intel |
| Chipset Model: | B760 |
| Total Processor Supported: | 1 |
| Processor Socket: | Socket LGA-1700 |
| Processor Generation Supported: | 14th Gen |
| Processor Generation Supported: | 13th Gen |
| Processor Generation Supported: | 12th Gen |
| Processor Supported: | Core |
| Processor Supported: | Pentium Gold |
| Processor Supported: | Celeron |
Memory
| Number of Memory Slots: | 4 |
| Memory Form Factor: | DIMM |
| Memory Form Factor: | UDIMM |
| Maximum Memory Supported: | 256 GB |
| Memory Technology: | DDR5 SDRAM |
| Memory Speed Supported: | 7600 MHz |
| Memory Speed Supported: | 7400 MHz |
| Memory Speed Supported: | 7200 MHz |
| Memory Speed Supported: | 7000 MHz |
| Memory Speed Supported: | 6800 MHz |
| Memory Speed Supported: | 6600 MHz |
| Memory Speed Supported: | 6400 MHz |
| Memory Speed Supported: | 6200 MHz |
| Memory Speed Supported: | 6000 MHz |
| Memory Speed Supported: | 5800 MHz |
| Memory Speed Supported: | 5600 MHz |
| Memory Speed Supported: | 5200 MHz |
| Memory Speed Supported: | 4800 MHz |
| Memory Speed Supported: | 4400 MHz |
| Error Checking: | ECC |
I/O Controller
| Controller Type: | Serial ATA/600 |
| RAID Supported: | Yes |
| RAID Levels: | 0 |
| RAID Levels: | 1 |
| RAID Levels: | 5 |
| RAID Levels: | 10 |
Video
| Onboard Video: | CPU Dependent Video |
| Graphics Controller Manufacturer: | Intel |
| Graphics Controller Model: | HD Graphics |
Audio
| Audio Channels: | 7.1 |
Network & Communication
| Bluetooth: | Yes |
| Bluetooth Standard: | Bluetooth 5.3 |
| Gigabit Ethernet: | Yes |
| 2.5Gigabit Ethernet: | Yes |
| Wireless LAN: | Yes |
| Wireless LAN Standard: | IEEE 802.11 a/b/g/n/ac/ax |
I/O Expansions
| Total Number of Expansion Slots: | 3 |
| PCI Express Standard: | PCI Express 5.0 |
| PCI Express Standard: | PCI Express 3.0 |
| Total Number of PCI Express Slots: | 3 |
| Number of PCI Express x1 Slots: | 2 |
| Number of PCI Express x16 Slots: | 1 |
Interfaces/Ports
| Total Number of USB Ports: | 6 |
| Number of USB 2.0 Ports: | 2 |
| Number of USB 3.2 Gen 1 Ports: | 3 |
| Number of USB 3.2 Gen 2 Type-C Ports: | 1 |
| HDMI: | Yes |
| HDMI Version: |
|
| DisplayPort: | Yes |
| Number of Network (RJ-45) Ports: | 1 |
Onboard Interfaces
| Number of SATA Interfaces: | 4 |
| Number of M.2 Interfaces: | 2 |
| Total Number of Onboard USB Ports: | 6 |
| Number of Onboard USB 2.0 Ports: | 4 |
| Onboard S/PDIF Header: | Yes |
Physical Characteristics
| Form Factor: | Micro ATX |
| Width: | 9.6" |
| Depth: | 9.6" |
Miscellaneous
| Brand Compatibility: | Intel |
| Environmental Compliance: | China Restriction of Hazardous Substances (China RoHS) |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance: | Taiwan Restriction of Hazardous Substances (Taiwan RoHS) |
| Environmental Compliance: | Waste Electrical and Electronic Equipment Directive (WEEE) |
Warranty
| Limited Warranty: | 3 Year |
 | WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. |
Be the first to review this product. Write a Review
Shipping Restrictions
- This item cannot be shipped to PO Boxes.
- This item can be shipped only within the U.S.
- UPC: 889523050507
- Mfr's Part #: B760M DS3H WF6E GEN5
