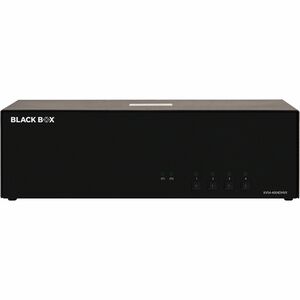

Black Box KVM Switch NIAP 4.0 Certified 4-Port Quad-Monitor DVI HDMI DisplayPort CAC

Black Box KVM Switch NIAP 4.0 Certified 4-Port Quad-Monitor DVI HDMI DisplayPort CAC
  • Item #:
  • Category:
  • Availability:
  • Packaging:
  • Platform:
  • Condition:
  • Brand:

For Government/Education/Business pricing, please call 440.355.8008


Your Price: $3112.59
Qty:
Product Rating

0 star(s) (0 Ratings) Write a Review


General Information

Guard sensitive data in defense applications, secure control rooms, server operations, corporate, educational, medical, banking, insurance, transit, or industrial applications, and more. This switch uses mechanical, electrical, and optical signal isolation to prevent hacking and data leakage. Control KVM (Keyboard, Video, and Mouse) operation on up to 8 DisplayPort, 4 HDMI, and 4 DVI-I computers plus analog audio using just 1 set of keyboard and mouse, 2 DisplayPort, 1 HDMI, 1 DVI-I displays, and analog audio.

NOTE: The switches support HDMI 1.4 and DisplayPort 1.2.

Complies with NIAP Protection Profile for Peripheral Sharing Device Version 4.0

The switches are tested and certified under the USA scheme for NIAP Protection Profile 4.0.

Front-Panel Buttons

Securely switch between sources.

Maximum Security

Inverted signals control data relays to guard connections against outside intrusion. Each port has an isolated data channel and each unit uses non-reprogrammable ROM with no data leakage between ports. Isolated connections also prevent data leaks between secure ports and the outside world when accessing classified and public networks over the internet.

Secure EDID Learn and Video Emulation

The switch emulates a keyboard and mouse for each attached computer via a USB cable. Selected and non-selected computers maintain a connection with the unit's keyboard-mouse emulation controllers, allowing for ultra-fast switching and restricting the discovery of newly connected peripherals during switching. Emulation also prevents the direct connection between peripherals and connected computers.

Tamperproof Seals

Built-in tamperproof seals and a long-life internal anti-tamper battery keep devices secure.

Optional CAC Port

Add a Common Access Card (CAC) reader at point-of-sale in retail or for access in other industries.


Technical Information
Connectivity Technology:Wired
Number of Computers Supported:4
Maximum Operating Distance:20 ft
Device Type:Secure KVM
Features:Tamper Proof
Features:Intrusion Detection

Video
Maximum Video Resolution:3840 x 2160

Interfaces/Ports
USB:Yes
HDMI:Yes
DVI:Yes
DisplayPort:Yes
Number of USB Ports:11
Number of HDMI Ports:5
Number of DVI Ports:5
Number of DisplayPorts:10

Environmental Conditions
Minimum Operating Temperature:32°F (0°C)
Maximum Operating Temperature:104°F (40°C)

Power Description
Input Current:3 A
Input Voltage Range:12V DC

Physical Characteristics
Form Factor:Desktop
Height:1.8"
Width:12.6"
Depth:6.7"
Weight (Approximate):4.20 lb

Miscellaneous
Package Contents:
  • KVM Switch, NIAP 4.0 Certified - 4-Port, Quad-Monitor, DVI, HDMI, DisplayPort, CAC
  • 1x 12 VDC Wallmount Supply (ICP36-120-3000) with US, EU, UK, and AU adapter clips
  • 1x Set of 4 rubber feet (already be attached)
  • 1x Quick Start Guide
Certifications & Standards:

NIAP 4.0 Certified

Environmental Compliance:Restriction of Hazardous Substances (RoHS)
Country of Origin:United States
TAA Compliant:Yes

Warranty
Limited Warranty:3 Year

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Be the first to review this product. Write a Review
Shipping Restrictions
  • This item cannot be shipped to PO Boxes.
  • This item can be shipped only within the U.S.

Special Order Item

This item ships directly from the manufacturer and is not stocked in our warehouse. If stock is available at the manufacturer, the item will ship directly to you, usually within 7 - 15 business days.

Once the order has been sent to the manufacturer it can no longer be canceled.

If payment is made via credit card it will be charged before the order is sent to the manufacturer.

You must contact the manufacturer directly regarding returns and defective items.

We will contact you by email if the item is sold out or backordered (and we were unable to update the site before you placed the order) or if the item will be delayed longer than expected.

We have no control over the speed of the manufacturer's order processing, or whether they will honor your request to ship the item by any particular method.



  • UPC: 822088278597
  • Mfr's Part #: KVS4-4004DHVX
